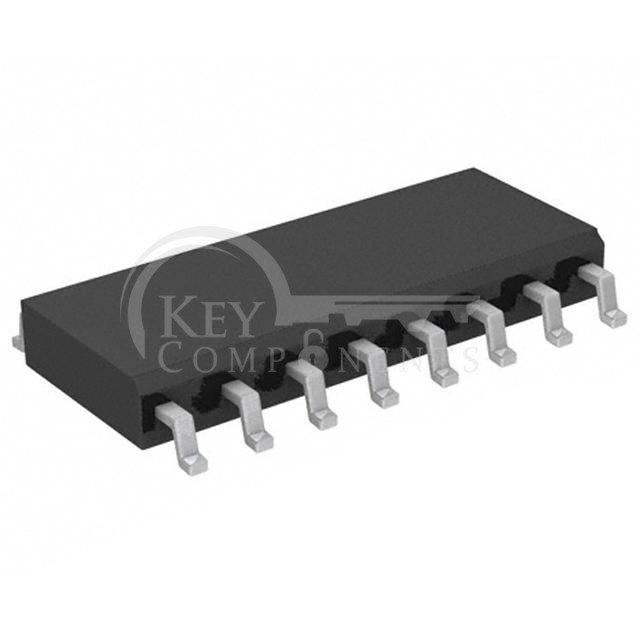

DG213DY-T1-E3

Type	Description
Product Status:	Active
Switch Circuit:	SPST - NO/NC
Multiplexer/Demultiplexer Circuit:	1:1
Number of Circuits:	4
On-State Resistance (Max):	60Ohm
Channel-to-Channel Matching (ΔRon):	1Ohm
Voltage - Supply, Single (V+):	3V ~ 40V
Voltage - Supply, Dual (V±):	±3V ~ 22V
Switch Time (Ton, Toff) (Max):	130ns, 100ns
-3db Bandwidth:	-
Charge Injection:	1pC
Channel Capacitance (CS(off), CD(off)):	5pF, 5pF
Current - Leakage (IS(off)) (Max):	500pA
Crosstalk:	-95dB @ 100kHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	16-SOIC

We provide 90 days warranty;
The Pre-Shipment Inspection (PSI) will be applied;
If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
Taxes & VAT will not be included;
