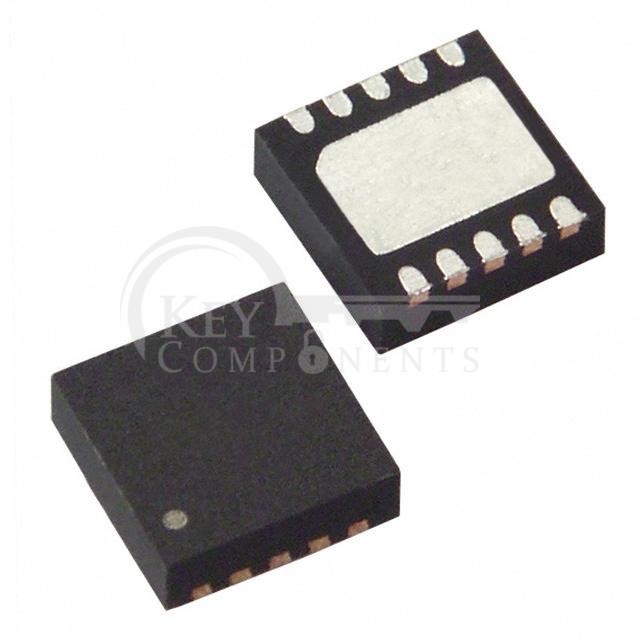

DG2618DN-T1-E4

Type	Description
Product Status:	Obsolete
Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	2
On-State Resistance (Max):	7Ohm
Channel-to-Channel Matching (ΔRon):	100mOhm
Voltage - Supply, Single (V+):	1.5V ~ 3.6V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	69ns, 39ns
-3db Bandwidth:	-
Charge Injection:	7pC
Channel Capacitance (CS(off), CD(off)):	9pF
Current - Leakage (IS(off)) (Max):	2nA
Crosstalk:	-80dB @ 1MHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	10-VFDFN Exposed Pad
Supplier Device Package:	10-DFN (3x3)
