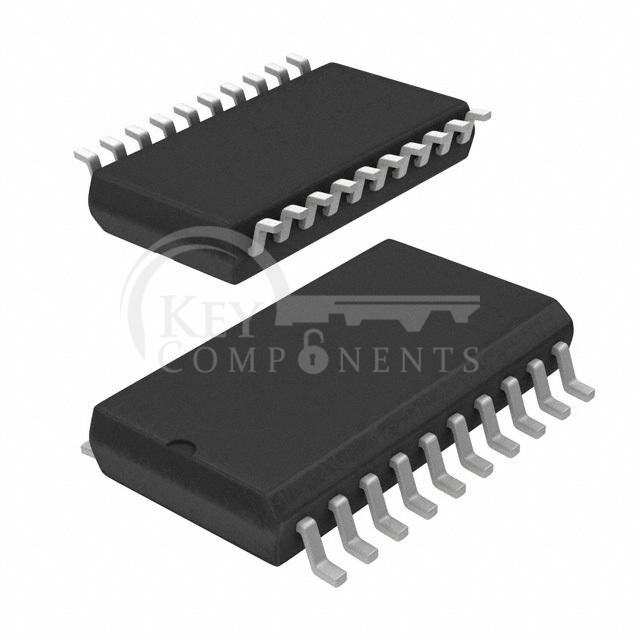

DG333ADW
| Manufacturer Part | DG333ADW |
|---|---|
| Manufacturer | Vishay Siliconix |
| Description | IC SWITCH QUAD SPDT 20SOIC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Switch Circuit: | SPDT |
| Multiplexer/Demultiplexer Circuit: | 2:1 |
| Number of Circuits: | 1 |
| On-State Resistance (Max): | 45Ohm |
| Channel-to-Channel Matching (ΔRon): | 2Ohm (Max) |
| Voltage - Supply, Single (V+): | 5V ~ 40V |
| Voltage - Supply, Dual (V±): | ±4V ~ 22V |
| Switch Time (Ton, Toff) (Max): | 175ns, 145ns |
| -3db Bandwidth: | - |
| Charge Injection: | 10pC |
| Channel Capacitance (CS(off), CD(off)): | 8pF |
| Current - Leakage (IS(off)) (Max): | 250pA |
| Crosstalk: | -80dB @ 1MHz |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package: | 20-SOIC |
