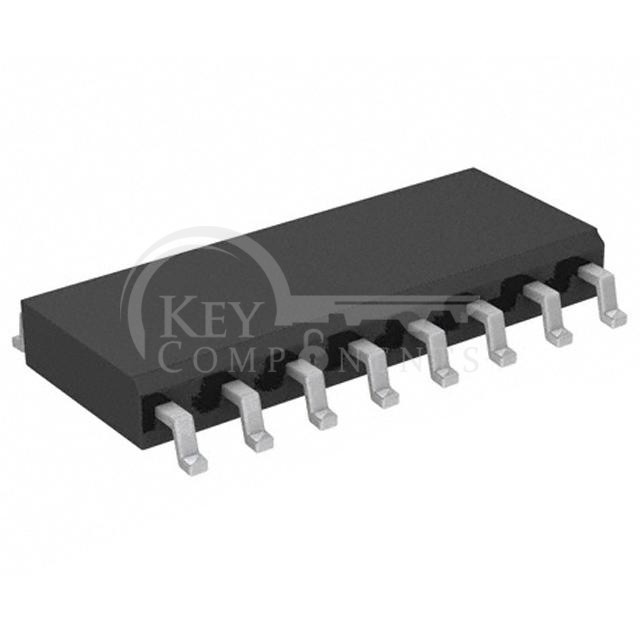

DG411LDY
| Manufacturer Part | DG411LDY |
|---|---|
| Manufacturer | Vishay Siliconix |
| Description | IC SWITCH QUAD SPST LV 16-SOIC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Switch Circuit: | SPST - NC |
| Multiplexer/Demultiplexer Circuit: | 1:1 |
| Number of Circuits: | 4 |
| On-State Resistance (Max): | 17Ohm |
| Channel-to-Channel Matching (ΔRon): | - |
| Voltage - Supply, Single (V+): | 2.7V ~ 12V |
| Voltage - Supply, Dual (V±): | ±3V ~ 6V |
| Switch Time (Ton, Toff) (Max): | 19ns, 12ns |
| -3db Bandwidth: | 280MHz |
| Charge Injection: | 5pC |
| Channel Capacitance (CS(off), CD(off)): | 5pF, 6pF |
| Current - Leakage (IS(off)) (Max): | 250pA |
| Crosstalk: | -95dB @ 1MHz |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package: | 16-SOIC |
