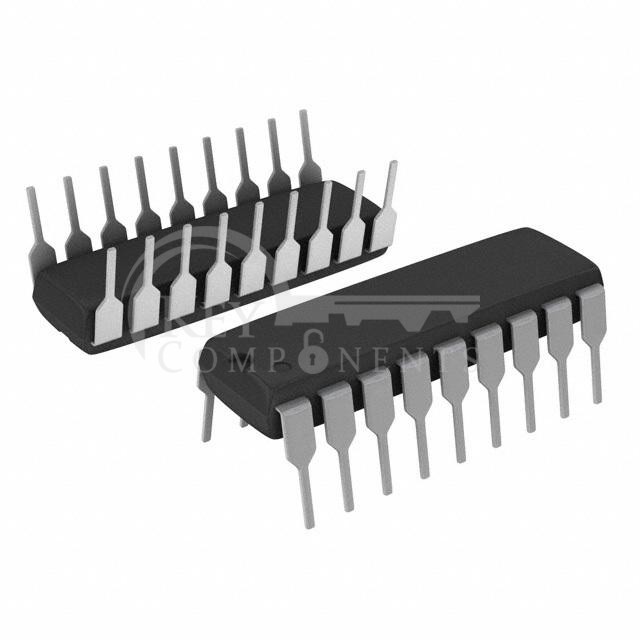

DG428DJ-E3
| Manufacturer Part | DG428DJ-E3 |
|---|---|
| Manufacturer | Vishay Siliconix |
| Description | IC MUX ANLG 8CH W/LATCH 18DIP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Switch Circuit: | - |
| Multiplexer/Demultiplexer Circuit: | 8:1 |
| Number of Circuits: | 1 |
| On-State Resistance (Max): | 100Ohm |
| Channel-to-Channel Matching (ΔRon): | 5Ohm |
| Voltage - Supply, Single (V+): | 12V |
| Voltage - Supply, Dual (V±): | ±15V |
| Switch Time (Ton, Toff) (Max): | 150ns, 150ns |
| -3db Bandwidth: | - |
| Charge Injection: | 1pC |
| Channel Capacitance (CS(off), CD(off)): | 11pF, 40pF |
| Current - Leakage (IS(off)) (Max): | 500pA |
| Crosstalk: | - |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Through Hole |
| Package / Case: | 18-DIP (0.300", 7.62mm) |
| Supplier Device Package: | 18-PDIP |
