DG642DY
| Manufacturer Part | DG642DY |
|---|---|
| Manufacturer | Vishay Siliconix |
| Description | IC VIDEO SWITCH SPDT 8SOIC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Switch Circuit: | SPDT |
| Multiplexer/Demultiplexer Circuit: | 2:1 |
| Number of Circuits: | 1 |
| On-State Resistance (Max): | 8Ohm |
| Channel-to-Channel Matching (ΔRon): | 500mOhm |
| Voltage - Supply, Single (V+): | 3V ~ 15V |
| Voltage - Supply, Dual (V±): | ±3V ~ 15V |
| Switch Time (Ton, Toff) (Max): | 100ns, 60ns |
| -3db Bandwidth: | 500MHz |
| Charge Injection: | 40pC |
| Channel Capacitance (CS(off), CD(off)): | 20pF, 20pF |
| Current - Leakage (IS(off)) (Max): | 10nA |
| Crosstalk: | -85dB @ 5MHz |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |

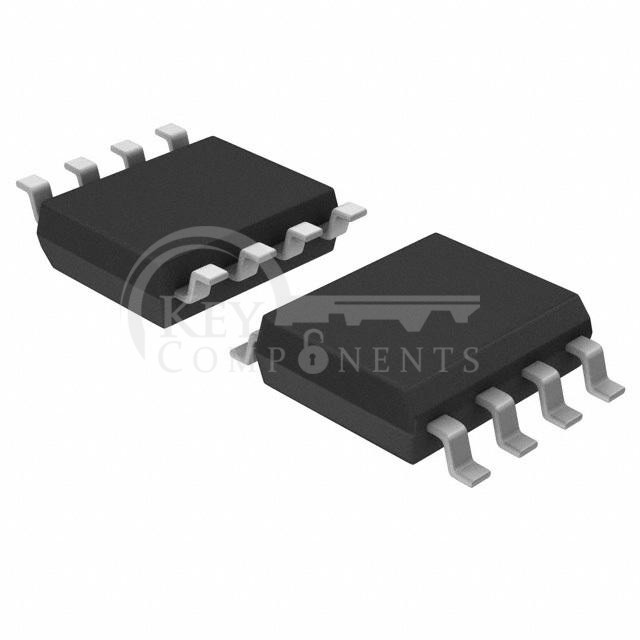

| Package / Case: | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package: | 8-SOIC |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
